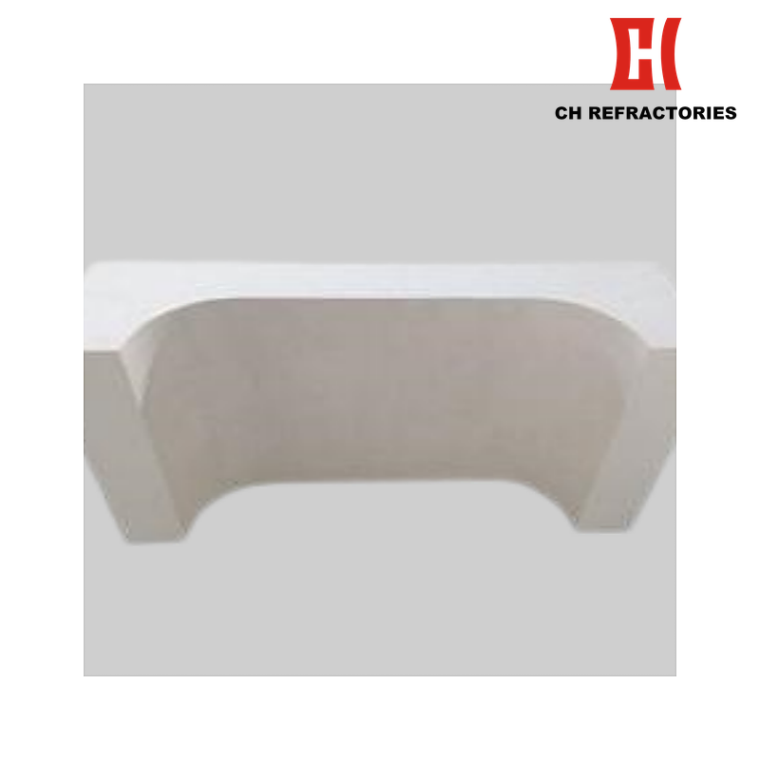

41# Fused zirconium corundum products
Application Industry: Refractories for Glass Industry
Application Equipment: Glass Industry Furnace Linings
Size: Custom 41# fused zirconium corundum products geometry per glass industry furnace design (free engineering on request)
Products Overview
Our 41# Fused zirconium corundum products, abbreviated as AZS-41#, is a high-performance refractory product engineered for highest-demand glass industry furnace lining service. 41# cast zirconia corundum brick is abbreviated as AZS-41#. Zirconium corundum brick is also named AZS brick. It is based on three chemical components of the Al2O3-ZrO2-SiO2 ternary phase diagram with Al2O3 taking A, ZrO2 taking Z, and SiO2 taking S. The national standard uses this abbreviation. The 41# cast zirconia corundum brick is widely used for linings of furnace in glass industries, with stable quality and good engineering performance.
The 41# Fused zirconium corundum products product family is offered in one engineering-proven AZS41-Y chemistry grade. The AZS41-Y grade features Al2O3 as leavings content, ZrO2 content 40-44 percent, SiO2 content maximum 13 percent, Na2O content maximum 1.30 percent, Fe2O3+TiO2+CaO+MgO+Na2O+K2O content maximum 2.00 percent, and Fe2O3+TiO2 content maximum 0.30 percent for highest-demand glass industry furnace lining service, with Bulk Density minimum 3.95 g/cm3, Apparent Porosity maximum 1.0 percent, Static Anti-corrosion Rate of Glass Liquid (normal soda-lime glass, 1500 °C × 36h) maximum 1.30 mm/24h, Exudation Temperature of Vitreous Phase minimum 1400 °C, Bubble Precipitation Rate (normal soda-lime glass, 1300 °C × 10h) maximum 1.0 percent, and Vitreous Phase Seepage Amount (1500 °C × 4h) maximum 3.0 percent. The grade has three casting types with Volume Weight minimum 3.55 g/cm3 for PT-QX casting, minimum 3.85 g/cm3 for ZWS casting, and minimum 3.95 g/cm3 for WS casting.
Sourced from our Xinmi City, Zhengzhou, Henan, China facility, each 41# Fused zirconium corundum products grade is engineered to ASTM, GB/T, and ISO refractory standards. For an overview of the broader catalogue, see the Refractories for Glass Industry category, or contact our technical sales team for a free consultation against your refractory drawing.
Product Features
Features:
- 41# AZS brick (AZS-41# standard) based on three chemical components of the Al2O3-ZrO2-SiO2 ternary phase diagram
- Engineering-proven high strength, high compression resistance, thermal shock resistance, erosion resistance, and good thermal conductivity
- One AZS41-Y chemistry grade covering ZrO2 content 40-44% and SiO2 content maximum 13% for highest-demand glass industry furnace lining service
- Bulk Density minimum 3.95 g/cm3 with Apparent Porosity maximum 1.0% for highest density glass industry furnace lining service
- Three casting types PT-QX, ZWS, WS with Volume Weight minimum 3.55 to 3.95 g/cm3 depending on casting type for glass industry furnace lining
Product Specification
41# Fused zirconium corundum products
| Brands / Items | Index | |
|---|---|---|
| AZS41-Y | ||
| Chemical composition (%) | Al2O3 | leavings |
| ZrO2 | 40.00-44.00 | |
| SiO2 ≤ | 13.00 | |
| Na2O ≤ | 1.30 | |
| Fe2O3+TiO2+CaO+MgO+Na2O+K2O ≤ | 2.00 | |
| Fe2O3+TiO2 ≤ | 0.30 | |
| Bulk density (g/cm³) ≥ | 3.95 | |
| Apparent porosity (%) ≤ | 1.0 | |
| Static anti-corrosion rate of glass liquid ≤ (normal soda-lime glass, 1500°C × 36h) (mm/24h) |
1.30 | |
| Exudation temperature of vitreous phase (°C) ≥ | 1400 | |
| Bubble precipitation rate ≤ (normal soda-lime glass, 1300°C × 10h) (%) |
1.0 | |
| Vitreous phase seepage amount ≤ (1500°C × 4h) (%) |
3.0 | |
| Volume weight (g/cm³) ≥ | PT, QX | 3.55 |
| ZWS | 3.85 | |
| WS | 3.95 | |
Note: Fifteen performance parameters specified per PDF source: Al2O3 content (leavings), ZrO2 content, SiO2 content, Na2O content, Fe2O3+TiO2+CaO+MgO+Na2O+K2O content, Fe2O3+TiO2 content, Bulk Density, Apparent Porosity, Static Anti-corrosion Rate of Glass Liquid (normal soda-lime glass, 1500 °C × 36h), Exudation Temperature of Vitreous Phase, Bubble Precipitation Rate (normal soda-lime glass, 1300 °C × 10h), Vitreous Phase Seepage Amount (1500 °C × 4h), and Volume Weight for PT-QX, ZWS, and WS casting types. One AZS41-Y chemistry grade engineered for glass industry furnace lining service. For project-specific chemistry and casting type, contact CH Refractories engineering.
Product Applications
41# Fused zirconium corundum products, abbreviated as AZS-41#, is a high-performance refractory product engineered for highest-demand glass industry furnace lining service. 41# cast zirconia corundum brick has the advantages of high strength, high compression resistance, thermal shock resistance, erosion resistance, and good thermal conductivity, and is widely used for linings of furnace in glass industries, with stable quality and good engineering performance.
Application Industry: Refractories for Glass Industry.
Target Equipment: Glass Industry Furnace Linings of small, medium-size, and large glass industrial operations.
Specific Application Zones: The AZS41-Y grade is engineered for highest-demand glass industry furnace lining service with ZrO2 content 40-44 percent and SiO2 content maximum 13 percent. The grade delivers Bulk Density minimum 3.95 g/cm3, Apparent Porosity maximum 1.0 percent, Static Anti-corrosion Rate of Glass Liquid (normal soda-lime glass, 1500 °C × 36h) maximum 1.30 mm/24h, Exudation Temperature of Vitreous Phase minimum 1400 °C, Bubble Precipitation Rate (normal soda-lime glass, 1300 °C × 10h) maximum 1.0 percent, and Vitreous Phase Seepage Amount (1500 °C × 4h) maximum 3.0 percent. The grade is available in three casting types PT-QX (Volume Weight minimum 3.55 g/cm3), ZWS (Volume Weight minimum 3.85 g/cm3), and WS (Volume Weight minimum 3.95 g/cm3) for highest-demand glass industry furnace lining applications.
CH Refractories is a 41# Fused zirconium corundum products manufacturer in China, Henan, Zhengzhou. The complete 41# Fused zirconium corundum products product family is manufactured in our Xinmi City, Zhengzhou, Henan, China facility to ASTM, GB/T, and ISO refractory standards. Each batch is supported by free consultation, on-site technical support, and a dedicated engineering team serving Refractories for Glass Industry customers across the global glass value chain.
