Selecting the right AZS-41 Bricks (Alumina-Zirconia-Silica fused zirconium corundum block) grade is critical for glass furnace superstructure service life, particularly in high-temperature and high-corrosion zones. AZS-41 Bricks fused cast refractory, also known as zirconite or ZB series blocks, are manufactured by melting high-purity alumina and zircon sand in electric arc furnaces, then casting into custom shapes with controlled cooling to achieve the characteristic dense crystalline structure.
AZS-41 Bricks Grade Selection for Glass Furnace
AZS-41 Bricks and other AZS grades are manufactured in three primary grades based on zirconium dioxide (zirconia content). Each grade, including AZS-41 Bricks, serves specific applications in glass furnace superstructure, regenerator, melting tank, and feeder channel zones:
- 33# AZS: zirconia content ≥33% — for regenerator and superstructure applications where thermal cycling dominates. Standard grade for most glass furnace applications.
- 36# AZS: zirconia content ≥36% — for melting tank sidewalls and throat zones where corrosion and thermal cycling combine. Intermediate premium grade.
- 41# AZS: zirconia content ≥41% — for melting tank bottom, electrode blocks, and other high-corrosion zones. Highest performance grade for extreme service conditions.
Higher zirconia content provides superior glass corrosion resistance due to the formation of a stable zirconia-rich crystalline phase that resists dissolution in molten glass. AZS-41 Bricks with zirconia content ≥41% can extend service life in critical zones by 30-50% compared to 33# grade AZS blocks in similar operating conditions, though at a higher initial cost. For glass manufacturers seeking long service life and reduced maintenance downtime, AZS-41 Bricks are the industry-premium solution for melting tank bottom, electrode blocks, and severe service zones.

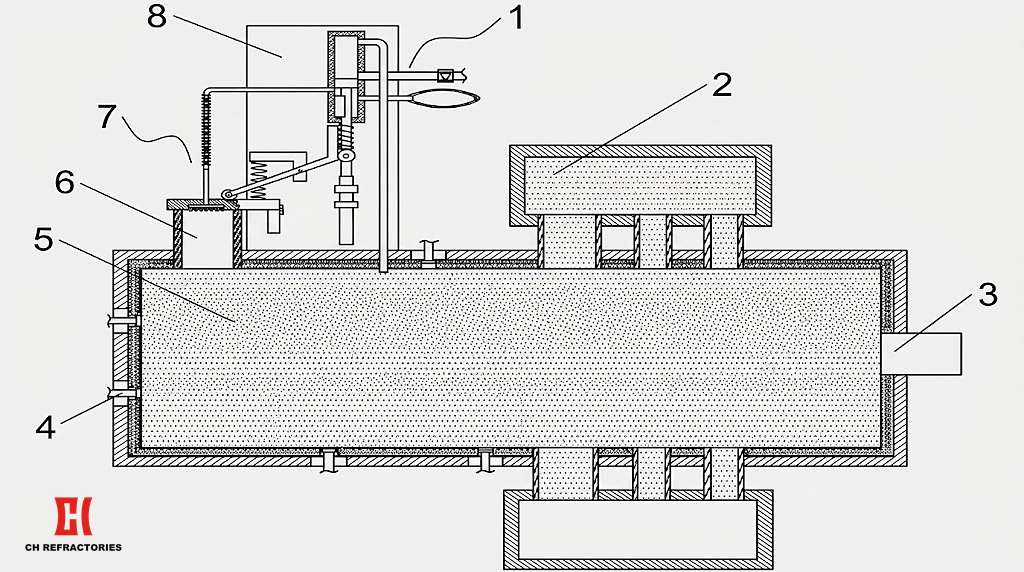

AZS-41 Bricks for Glass Furnace Superstructure
The glass furnace superstructure — including the regenerator crown, port neck, and upper checker zone — experiences severe alkali vapor attack and thermal cycling. CH Refractories’ AZS-41 Bricks are specifically engineered for these conditions, providing:
- High zirconia content for glass corrosion resistance
- Dense crystalline structure for thermal shock resistance
- Optimized glass phase distribution for service life
- Engineered expansion joints for thermal cycling
- Reduced exudation tendency compared to lower grades

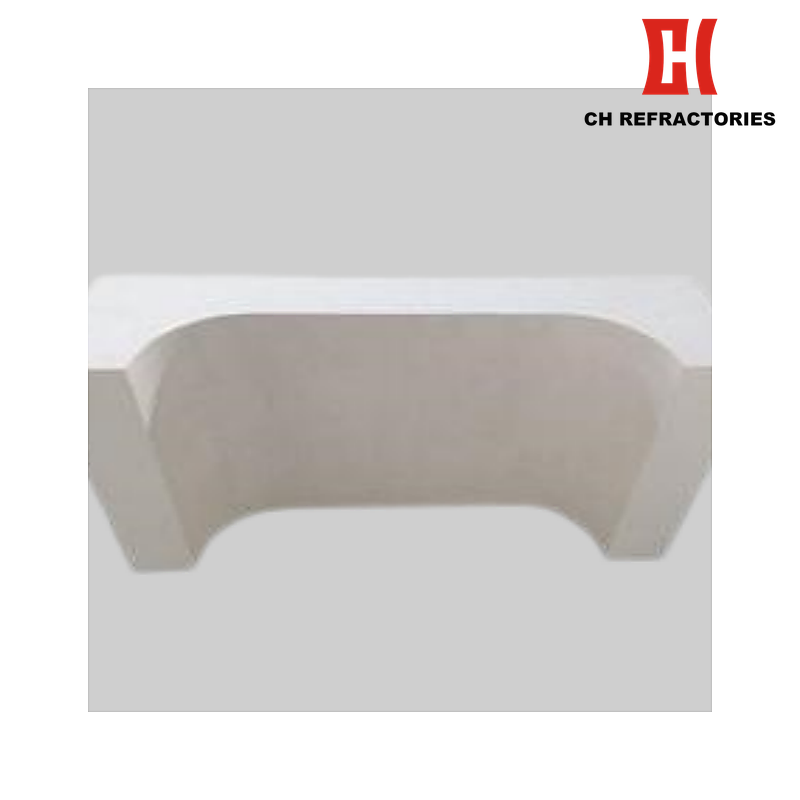

CH Refractories AZS-41 Bricks Specifications
Our AZS-41 Bricks deliver consistent quality through electric arc furnace fusion, ISO 9001 batch traceability, and custom shapes per glass furnace design. Standard specifications include:
- Zirconium dioxide (zirconia content) ≥41%
- Alumina content ≥45%
- Silica content ≤13%
- Bulk density ≥3.7 g/cm³
- Apparent porosity ≤1%
- Cold crushing strength ≥300 MPa
These AZS-41 Bricks specifications translate to typical service life of 10+ years for glass furnace superstructure applications, with proper expansion joint design and masonry execution. Compared to lower AZS grades, AZS-41 Bricks deliver verified long-term performance across regenerator crowns, port necks, and upper checker zones where alkali vapor attack and thermal cycling are most severe. ISO 9001 batch traceability ensures consistent quality across production lots.
AZS-41 Bricks Selection Guidelines
CH Refractories recommends the following selection criteria for glass furnace superstructure:
- Operating temperature profile across the furnace superstructure
- Glass type and corrosion aggressiveness (soda-lime, borosilicate, lead glass, etc.)
- Campaign life targets between cold repairs
- Energy efficiency considerations (heat loss through superstructure)
- Budget constraints and total cost of ownership
Glass furnace superstructure service life depends on three factors: AZS grade selection, block expansion joint design, and masonry execution. All three must align for long years campaign life.
Contact CH Refractories for glass furnace refractory engineering consultation and AZS-41 Bricks selection. Our engineering team provides complete AZS-41 Bricks specification, masonry execution, and after-sales service.
CH Refractories Engineering Team
40+ years of refractory engineering experience · Steel · Cement · Glass · Nonferrous
