Blast furnace tuyere zones experience extreme thermal stress, mechanical pressure, and alkali attack. Composite brick installation techniques directly determine campaign life. According to industry research published in metallurgy journals, destruction of blast furnace tuyeres has historically been considered unpredictable, occurring up to 120 times per year at some facilities. Proper composite brick engineering and installation dramatically reduces this failure rate.
Why Tuyere Zones Demand Composite Bricks
The tuyere zone experiences the most severe conditions in a blast furnace:
- Operating temperatures exceeding 1500 °C (tuyere raceway)
- High-velocity hot blast air injection (1000-1500 Nm³/min)
- Alkali vapor attack from coal and coke combustion (potassium oxide K2O, sodium oxide Na2O)
- Mechanical stress from tuyere equipment weight (typically 15-25 tonnes per tuyere)
- Thermal cycling between hot blast and tuyere cooling
These combined conditions cause conventional single-material refractory linings to fail prematurely, typically requiring tuyere rebuilds every 6-18 months. Composite brick engineering combining multiple refractory materials (typically micro-pore mullite, silicon carbide SiC, andalusite, and corundum) extends service life to 15+ years.
Composite Brick Material Selection

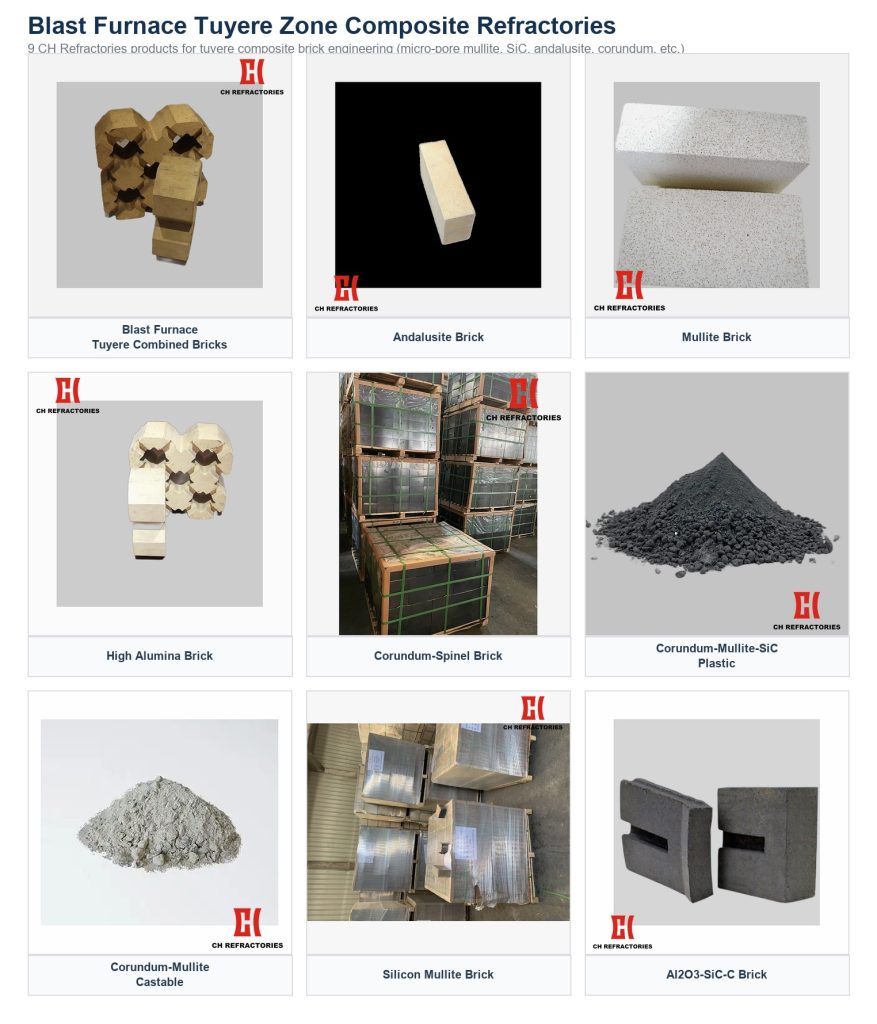

Modern blast furnace tuyere composite bricks typically combine 3-5 different refractory materials, each selected for specific service conditions:
- Tuyere Nose (Highest Wear Zone): Corundum-mullite composite brick with SiC additive for extreme thermal shock resistance and alkali attack.
- Tuyere Cooling Zone: Micro-pore mullite brick with low thermal conductivity for heat insulation and structural stability.
- Tuyere Bronze Assembly Zone: High-alumina brick with SiC additive for thermal cycling resistance around tuyere fittings.
- Bosh and Belly Zones: Corundum-mullite and SiC-bonded bricks for combined thermal shock and abrasion resistance.
CH Refractories Installation Best Practices
Our installation methodology has been refined across 40+ years and 200+ blast furnace projects:
- 100% Pre-Masonry at Factory: Composite bricks assembled at factory conditions before shipment, ensuring dimensional accuracy. Each assembly is checked against engineering drawings before shipping.
- 3D Solidworks Modeling: Engineering analysis of complex geometry before brick production. This identifies potential interference zones and ensures perfect fit.
- Flow Simulation Verification: Numerical analysis validating brick arrangement under operating conditions, including thermal expansion and stress distribution.
- Microscopic Material Bonding Research: Multi-material interface analysis for stress transmission. This ensures composite brick components work together rather than against each other.
- On-Site Senior Mason Supervision: Per-zone quality checkpoints with dimensional verification. Each tuyere assembly is checked against the original engineering drawing.
Service Life Achievement
CH Refractories’ composite brick tuyere installations deliver verified performance:

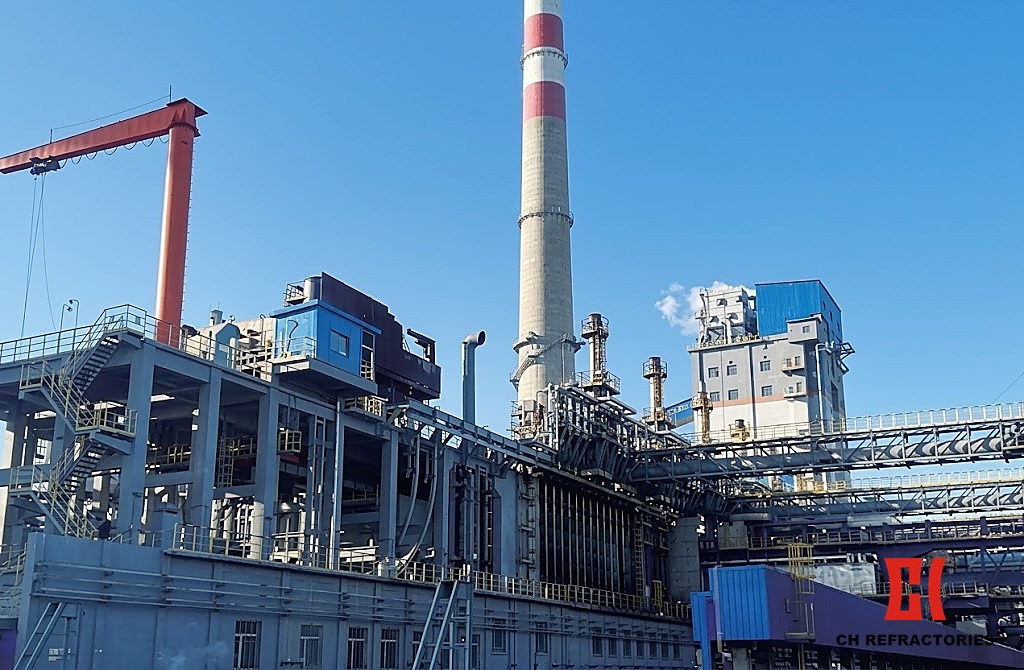

- 15+ years verified campaign life on blast furnace tuyere zones (Jiugang 1080 m³ project)
- Zero on-site issues during installation (100% precision pre-masonry)
- Annual on-site inspections during scheduled shutdowns
- Microscopic material bonding analysis for ongoing performance assessment
Common Installation Issues to Avoid
Based on 40+ years of field experience, the most common installation issues that compromise tuyere service life include:
- Improper expansion joint gaps (too tight causes spalling; too loose causes hot blast leakage)
- Misalignment between tuyere nose and cooling plate (creates thermal stress concentration)
- Inadequate surface preparation before masonry (reduces bond strength)
- Use of incompatible mortar between composite brick components (creates stress discontinuities)
- Failure to pre-heat masonry zone before tuyere commissioning (causes thermal shock)
Composite brick installation is 50% engineering, 50% execution. Both halves must align for 15+ years service life. Pre-masonry at factory conditions ensures execution quality, while engineering analysis ensures proper material selection and arrangement.
Contact CH Refractories for blast furnace tuyere zone engineering and composite brick installation services.
CH Refractories Engineering Team
40+ years of refractory engineering experience · Steel · Cement · Glass · Nonferrous
