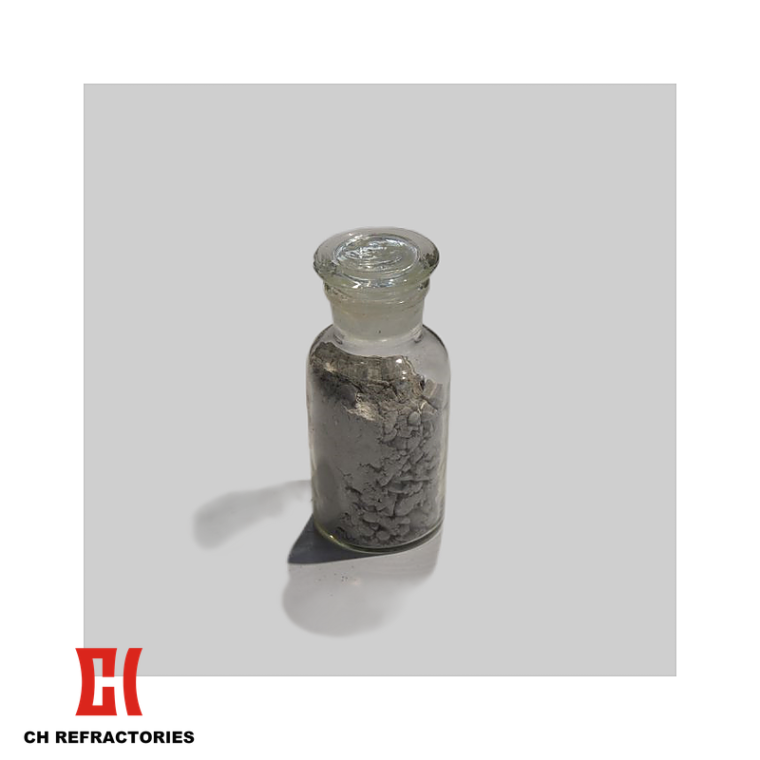

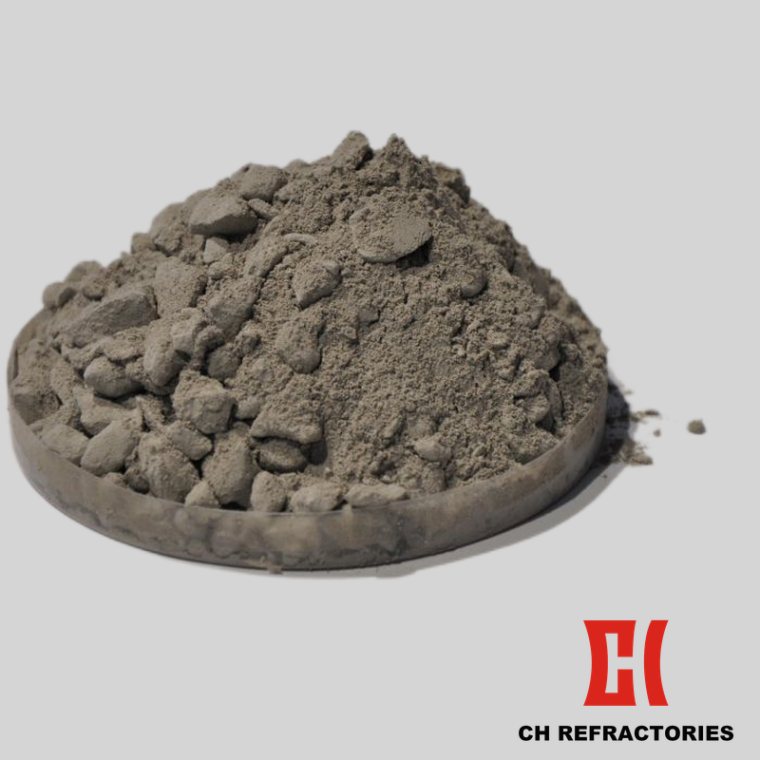

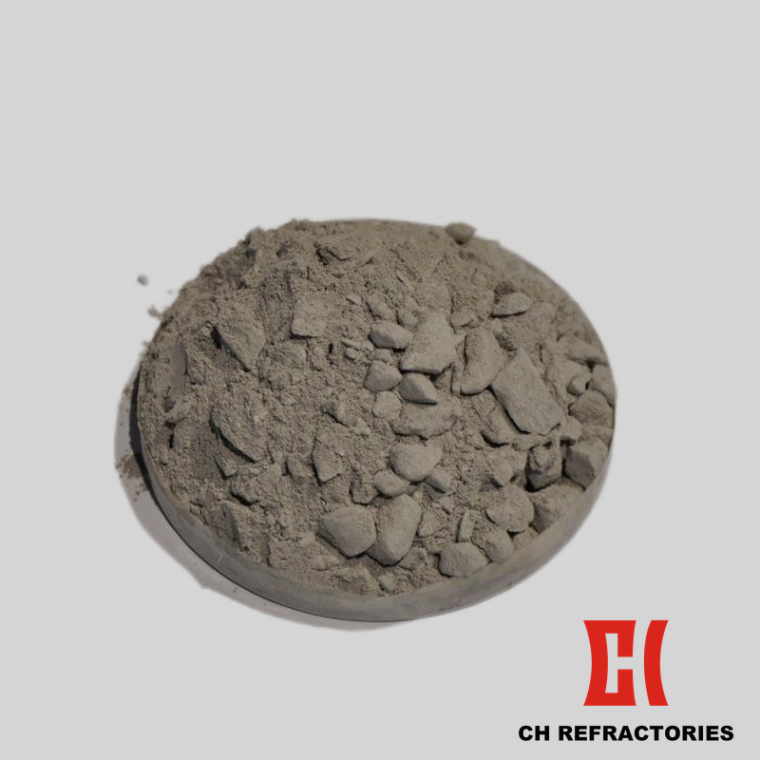

Anti-crust castable
Application Industry: Refractories for Cement Industry
Application Equipment: Cement Kiln Cyclone Preheater Cutting Slope, Rising Flue, and Preheater Cone
Size: Custom anti-crust castable geometry per cement kiln service design (free engineering on request)
Products Overview
Our Anti-crust castable is a high-performance refractory product engineered for cement kiln cyclone preheater and preheater cone service. In the high temperature state, the anti-crust castable forms a glaze layer on the surface of the material, preventing the penetration of the glass phase in the cement raw material, thereby playing an anti-skinning effect. The material is mainly used for the easy skinning of the cyclone preheater cutting slope, rising flue, preheater cone and other parts.
The Anti-crust castable product family is offered in two engineering-proven KJZL chemistry grades. The CH-KJZL55 grade features SiC+SiO2 content minimum 55% for general cement kiln cyclone preheater anti-crust service, with Bulk Density minimum 2.4 g/cm3 after 110 °C curing for 24 hours, Cold Crushing Strength minimum 60 MPa after 110 °C curing for 24 hours and minimum 70 MPa after 1100 °C firing for 3 hours, Modulus of Rupture minimum 8 MPa after 110 °C curing for 24 hours and minimum 9 MPa after 1100 °C firing for 3 hours, Permanent Linear Change ±0.4 percent after 1100 °C firing for 3 hours, and Maximum Service Temperature 1300 °C. The CH-KJZL60 grade features SiC+SiO2 content minimum 60% for higher-demand cement kiln cyclone preheater anti-crust service, with Bulk Density minimum 2.5 g/cm3, Cold Crushing Strength minimum 70 to 80 MPa, Modulus of Rupture minimum 10 to 11 MPa, and Maximum Service Temperature 1400 °C. Both grades feature good volume stability for cyclone preheater anti-crust service.
Sourced from our Xinmi City, Zhengzhou, Henan, China facility, each Anti-crust castable grade is engineered to ASTM, GB/T, and ISO refractory standards. For an overview of the broader catalogue, see the Refractories for Cement Industry category, or contact our technical sales team for a free consultation against your refractory drawing.
Product Features
Features:
- Manufactured from high-purity SiC and SiO2 based formulation with high strength and anti-crust properties
- Engineering-proven forms a glaze layer on the surface of the material in high temperature state, preventing the penetration of the glass phase in the cement raw material
- Two KJZL chemistry grades covering SiC+SiO2 content minimum 55%-60% for matching different cement kiln service temperature requirements
- Bulk Density minimum 2.4 to 2.5 g/cm3 after 110 °C curing for 24 hours with good volume stability
- Maximum Service Temperature 1300 to 1400 °C for cyclone preheater and preheater cone service in cement industry
Product Specification
In the high temperature state, the anti-crust castable forms a glaze layer on the surface of the material, preventing the penetration of the glass phase in the cement raw material, thereby playing an anti-skinning effect. The material is mainly used for the easy skinning of the cyclone preheater cutting slope, rising flue, preheater cone and other parts.
|
Brands
Items
|
CH-KJZL55 | CH-KJZL60 | |
|---|---|---|---|
| SiC+SiO2 (%) ≥ | 55 | 60 | |
| Bulk density (g/cm³) ≥ (110°C × 24h) |
2.4 | 2.5 | |
| Flexural strength (MPa) ≥ | 110°C × 24h | 8 | 10 |
| 1100°C × 3h | 9 | 11 | |
| Compressive strength (MPa) ≥ | 110°C × 24h | 60 | 70 |
| 1100°C × 3h | 70 | 80 | |
| Line rate of change PLC (%) ≤ (1100°C × 3h) |
±0.4 | ±0.4 | |
| Maximum Service temperature (°C) | 1300 | 1400 | |
Note: Six performance parameters specified: SiC+SiO2 content, Bulk density, Flexural strength, Compressive strength, Line rate of change, and Maximum Service temperature. Two KJZL chemistry grades engineered for cement kiln cyclone preheater and preheater cone anti-crust service. For project-specific chemistry and grade, contact CH Refractories engineering.
Product Applications
Anti-crust castable is a high-performance refractory product manufactured from high-purity SiC and SiO2 based formulation with high strength and anti-crust properties, engineered for cement kiln cyclone preheater and preheater cone service. In the high temperature state, the product forms a glaze layer on the surface of the material, preventing the penetration of the glass phase in the cement raw material, thereby playing an anti-skinning effect. The material is mainly used for the easy skinning of the cyclone preheater cutting slope, rising flue, preheater cone and other parts, with stable quality and good engineering performance.
Application Industry: Refractories for Cement Industry.
Target Equipment: Cement Kiln Cyclone Preheater Cutting Slope, Rising Flue, and Preheater Cone of small, medium-size, and large cement kilns in cement industry operations.
Specific Application Zones: The CH-KJZL55 grade (SiC+SiO2 content minimum 55%) is the standard variant for general cement kiln cyclone preheater anti-crust service, with Maximum Service Temperature 1300 °C. The CH-KJZL60 grade (SiC+SiO2 content minimum 60%) is the higher-demand variant for cement kiln cyclone preheater anti-crust service, with Maximum Service Temperature 1400 °C. Both grades deliver Bulk Density minimum 2.4 to 2.5 g/cm3, Cold Crushing Strength minimum 60 to 80 MPa depending on grade and curing/firing condition, Modulus of Rupture minimum 8 to 11 MPa depending on grade, and Permanent Linear Change ±0.4 percent after 1100 °C firing for 3 hours.
CH Refractories is an Anti-crust castable manufacturer in China, Henan, Zhengzhou. The complete Anti-crust castable product family is manufactured in our Xinmi City, Zhengzhou, Henan, China facility to ASTM, GB/T, and ISO refractory standards. Each batch is supported by free consultation, on-site technical support, and a dedicated engineering team serving Refractories for Cement Industry customers across the global cement value chain.
