Fused zirconium corundum products
Application Industry: Refractories for Glass Industry
Application Equipment: Glass Industry Furnace Linings
Size: Custom fused zirconium corundum products geometry per glass industry furnace design (free engineering on request)
Products Overview

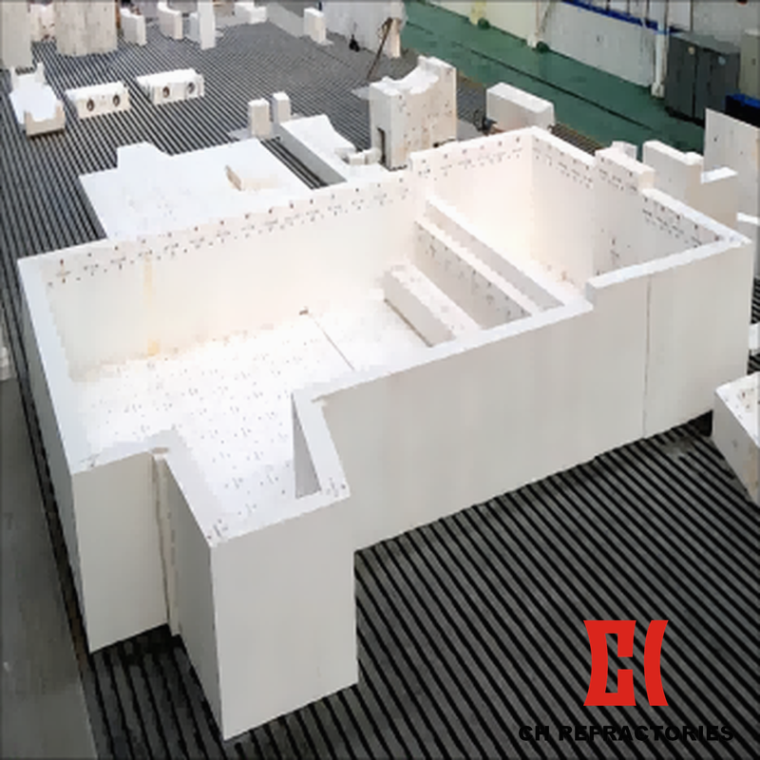

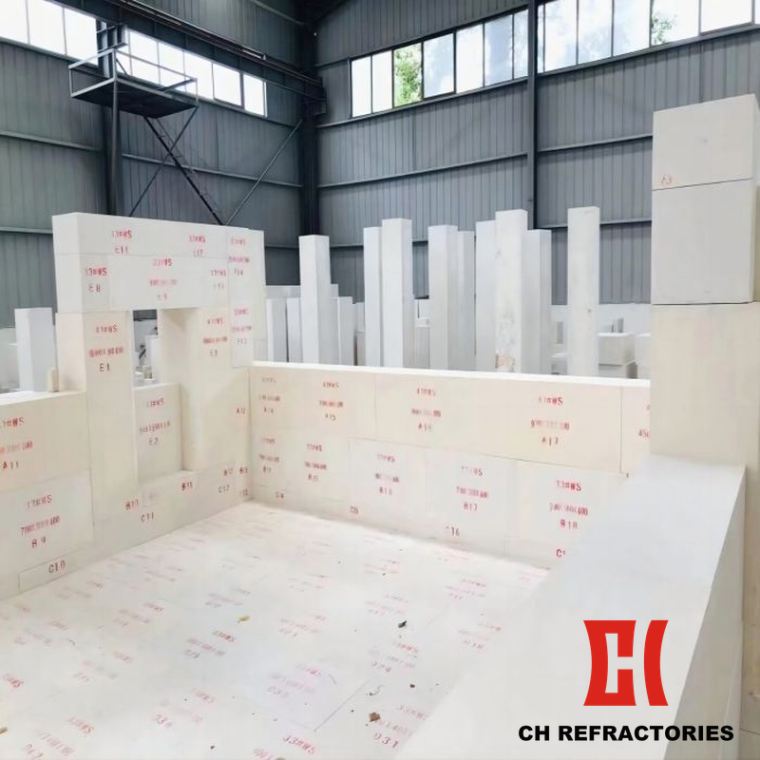

Our Fused zirconium corundum products, also known as AZS brick, is a high-performance refractory product engineered for glass industry furnace lining service. Zirconium corundum brick is also named AZS brick. It is based on three chemical components of the Al2O3-ZrO2-SiO2 ternary phase diagram. It is arranged according to the order of its contents. Al2O3 takes A, ZrO2 takes Z, and SiO2 takes S. The national standard uses this abbreviation. The product has high strength, high compression resistance, thermal shock resistance, erosion resistance, and good thermal conductivity, with stable quality and good engineering performance.
The Fused zirconium corundum products product family is offered in three engineering-proven AZS chemistry grades (33#, 36#, and 41# AZS standards). The AZS33-Y grade (33# AZS standard) features ZrO2 content 32-36 percent and SiO2 content maximum 16 percent for general glass industry furnace lining service, with Bulk Density minimum 3.75 g/cm3, Apparent Porosity maximum 1.5 percent, Static Anti-corrosion Rate of Glass Liquid (normal soda-lime glass, 1500 °C × 36h) maximum 1.50 mm/24h, Exudation Temperature of Vitreous Phase minimum 1400 °C, Bubble Precipitation Rate maximum 2.0 percent, and Vitreous Phase Seepage Amount maximum 2.0 percent. The AZS36-Y grade (36# AZS standard) features ZrO2 content 35-40 percent and SiO2 content maximum 14 percent for higher-demand glass industry furnace lining service, with Bulk Density minimum 3.80 g/cm3, Apparent Porosity maximum 1.0 percent, Static Anti-corrosion Rate of Glass Liquid maximum 1.40 mm/24h, Bubble Precipitation Rate maximum 1.5 percent, and Vitreous Phase Seepage Amount maximum 3.0 percent. The AZS41-Y grade (41# AZS standard) features ZrO2 content 40-44 percent and SiO2 content maximum 13 percent for highest-demand glass industry furnace lining service, with Bulk Density minimum 3.95 g/cm3, Apparent Porosity maximum 1.0 percent, Static Anti-corrosion Rate of Glass Liquid maximum 1.30 mm/24h, Bubble Precipitation Rate maximum 1.0 percent, and Vitreous Phase Seepage Amount maximum 3.0 percent.
Sourced from our Xinmi City, Zhengzhou, Henan, China facility, each Fused zirconium corundum products grade is engineered to ASTM, GB/T, and ISO refractory standards. For an overview of the broader catalogue, see the Refractories for Glass Industry category, or contact our technical sales team for a free consultation against your refractory drawing.
Product Features
Features:
- AZS brick is based on three chemical components of the Al2O3-ZrO2-SiO2 ternary phase diagram (Al2O3 takes A, ZrO2 takes Z, and SiO2 takes S)
- Engineering-proven high strength, high compression resistance, thermal shock resistance, erosion resistance, and good thermal conductivity
- Three AZS chemistry grades covering 33#, 36#, and 41# AZS standards with ZrO2 content 32-44% for matching different glass industry furnace service requirements
- Bulk Density minimum 3.75 to 3.95 g/cm3 and Apparent Porosity maximum 1.0% to 1.5% for high density glass industry furnace lining service
- Three casting types PT-QX, ZWS, WS with Volume Weight minimum 3.45 to 3.95 g/cm3 depending on casting type and grade for glass industry furnace lining
Product Specification
Fused zirconium corundum products
Zirconium corundum brick is also named AZS brick. It is based on three chemical components of the Al2O3-ZrO2-SiO2 ternary phase diagram. It is arranged according to the order of its contents. Al2O3 takes A, ZrO2 takes Z, and SiO2 takes S. The national standard uses this abbreviation. For example, No.33 cast-cast zirconia corundum brick, abbreviated as AZS-33#, No. 36 cast zirconia corundum brick, abbreviated as AZS-36#, No.41 cast zirconia corundum brick, abbreviated as AZS-41#. Widely be used for linings of furnace in glass industries. Advantages: High strength and high compression resistance; Thermal shock resistance and erosion resistance; Performance in high temperature, good thermal conductivity; Customerize mould according to different size requirements for free.
>>>Product parameters
| Brands / Items | Index | |||
|---|---|---|---|---|
| AZS33-Y | AZS36-Y | AZS41-Y | ||
| Chemical composition (%) | Al2O3 | leavings | leavings | leavings |
| ZrO2 | 32.00-36.00 | 35.00-40.00 | 40.00-44.00 | |
| SiO2 ≤ | 16.00 | 14.00 | 13.00 | |
| Na2O ≤ | 1.45 | 1.45 | 1.30 | |
| Fe2O3+TiO2+CaO+MgO+Na2O+K2O ≤ | 2.00 | 2.00 | 2.00 | |
| Fe2O3+TiO2 ≤ | 0.30 | 0.30 | 0.30 | |
| Bulk density (g/cm³) ≥ | 3.75 | 3.80 | 3.95 | |
| Apparent porosity (%) ≤ | 1.5 | 1.0 | 1.0 | |
| Static anti-corrosion rate of glass liquid ≤ (normal soda-lime glass, 1500°C × 36h) (mm/24h) |
1.50 | 1.40 | 1.30 | |
| Exudation temperature of vitreous phase (°C) ≥ | 1400 | 1400 | 1400 | |
| Bubble precipitation rate ≤ (normal soda-lime glass, 1300°C × 10h) (%) |
2.0 | 1.5 | 1.0 | |
| Vitreous phase seepage amount ≤ (1500°C × 4h) (%) |
2.0 | 3.0 | 3.0 | |
| Volume weight (g/cm³) ≥ | PT, QX | 3.45 | 3.45 | 3.55 |
| ZWS | 3.60 | 3.70 | 3.85 | |
| WS | 3.70 | 3.80 | 3.95 | |
Note: Fifteen performance parameters specified per source images: Al2O3, ZrO2, SiO2, Na2O, Fe2O3+TiO2+CaO+MgO+Na2O+K2O, and Fe2O3+TiO2 content, Bulk density, Apparent porosity, Static anti-corrosion rate, Exudation temperature, Bubble precipitation rate, Vitreous phase seepage amount, and Volume weight (PT/QX, ZWS, WS). Three Fused zirconium corundum grades (AZS33-Y, AZS36-Y, AZS41-Y) engineered for glass industry furnace lining service. For project-specific chemistry and casting type, contact CH Refractories engineering.
Product Applications
Fused zirconium corundum products, also known as AZS brick, is a high-performance refractory product engineered for glass industry furnace lining service. Zirconium corundum brick is based on three chemical components of the Al2O3-ZrO2-SiO2 ternary phase diagram with Al2O3 taking A, ZrO2 taking Z, and SiO2 taking S. The product has high strength, high compression resistance, thermal shock resistance, erosion resistance, and good thermal conductivity for glass industry furnace lining service.
Application Industry: Refractories for Glass Industry.
Target Equipment: Glass Industry Furnace Linings of small, medium-size, and large glass industrial operations.
Specific Application Zones: The AZS33-Y grade (33# AZS standard) is engineered for general glass industry furnace lining service, with ZrO2 content 32-36 percent, SiO2 content maximum 16 percent, Bulk Density minimum 3.75 g/cm3, Apparent Porosity maximum 1.5 percent, Static Anti-corrosion Rate of Glass Liquid maximum 1.50 mm/24h, Bubble Precipitation Rate maximum 2.0 percent, and Vitreous Phase Seepage Amount maximum 2.0 percent. The AZS36-Y grade (36# AZS standard) is engineered for higher-demand glass industry furnace lining service, with ZrO2 content 35-40 percent, SiO2 content maximum 14 percent, Bulk Density minimum 3.80 g/cm3, Apparent Porosity maximum 1.0 percent, Static Anti-corrosion Rate of Glass Liquid maximum 1.40 mm/24h, Bubble Precipitation Rate maximum 1.5 percent, and Vitreous Phase Seepage Amount maximum 3.0 percent. The AZS41-Y grade (41# AZS standard) is engineered for highest-demand glass industry furnace lining service, with ZrO2 content 40-44 percent, SiO2 content maximum 13 percent, Bulk Density minimum 3.95 g/cm3, Apparent Porosity maximum 1.0 percent, Static Anti-corrosion Rate of Glass Liquid maximum 1.30 mm/24h, Bubble Precipitation Rate maximum 1.0 percent, and Vitreous Phase Seepage Amount maximum 3.0 percent. All three grades are available in three casting types PT-QX, ZWS, and WS for different glass industry furnace lining applications.
CH Refractories is a Fused zirconium corundum products manufacturer in China, Henan, Zhengzhou. The complete Fused zirconium corundum products product family is manufactured in our Xinmi City, Zhengzhou, Henan, China facility to ASTM, GB/T, and ISO refractory standards. Each batch is supported by free consultation, on-site technical support, and a dedicated engineering team serving Refractories for Glass Industry customers across the global glass value chain.
