Ladle Working Layer Gunning Mix for Steel Industry
Application Industry: Refractories for Steel Industry

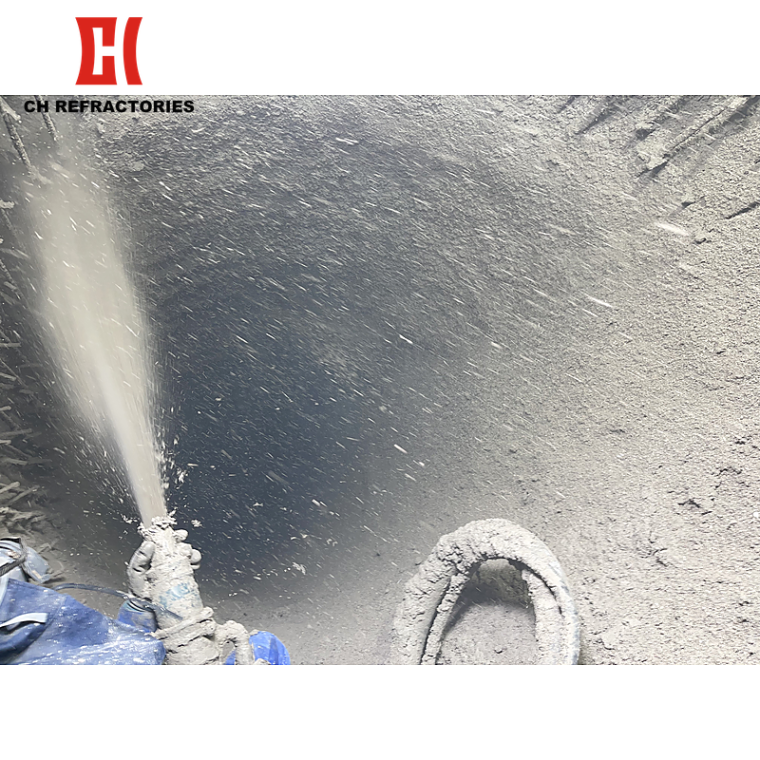

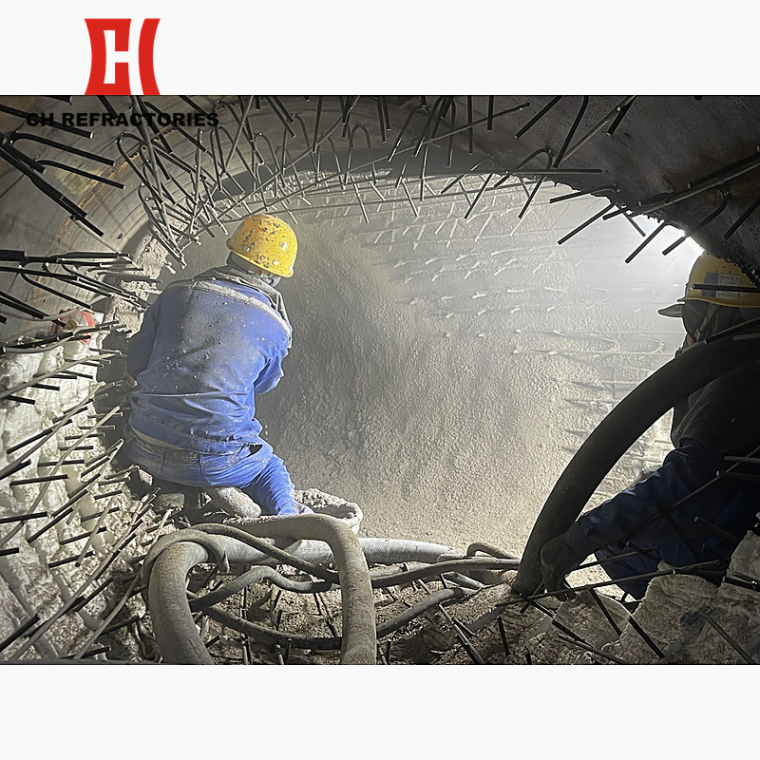

Application Equipment: Ladle Working Layer Surface Repair by Gunning Method

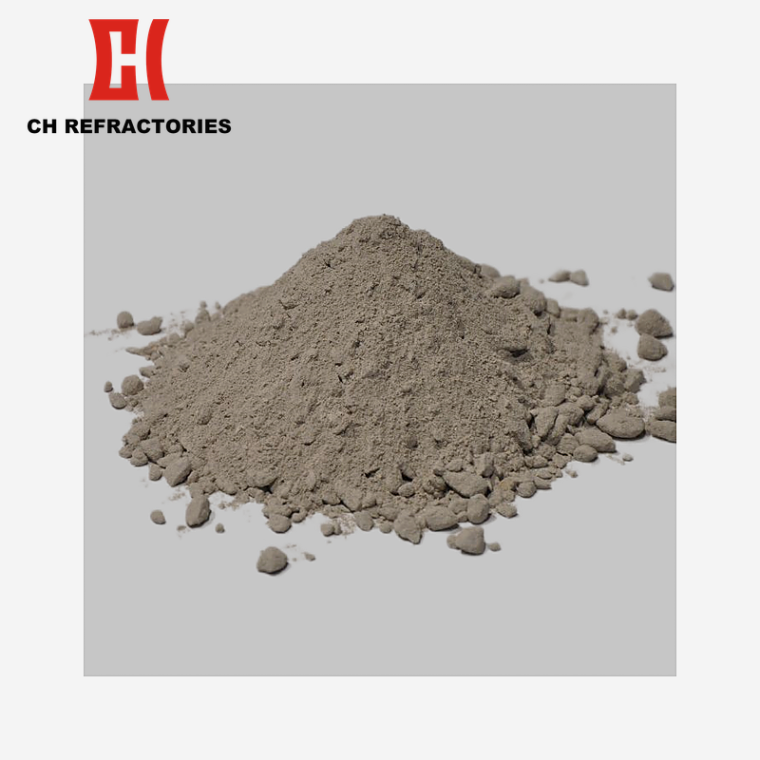

Size: Pre-mixed granular gunning material with custom grain size (free engineering on request)
Products Overview
Our Ladle Working Layer Gunning Mix is a refractory gunning product engineered for ladle working layer surface repair by gunning method. The product family is manufactured from high-purity corundum and magnesium aluminate spinel as the main raw materials, featuring wet spraying technique for ladle working layer surface application. The product shows no pollution to environment and no CO2 or CO gas produced during ladle production and use.
The Ladle Working Layer Gunning Mix product family is offered in two engineering-proven GBP chemistry grades. The CH-GBP85 grade features alumina content minimum 85%, apparent porosity maximum 12%, bulk density minimum 2.80 g/cm³, cold crushing strength minimum 60 MPa, and permanent linear change 0 to +1.5 percent after 1550 °C firing for 3 hours. The CH-GBP88 grade features alumina content minimum 88%, apparent porosity maximum 11%, bulk density minimum 2.90 g/cm³, cold crushing strength minimum 70 MPa, and permanent linear change 0 to +1.5 percent after 1550 °C firing for 3 hours.
Sourced from our Xinmi City, Zhengzhou, Henan, China facility, each Ladle Working Layer Gunning Mix grade is engineered to ASTM, GB/T, and ISO refractory standards. For an overview of the broader catalogue, see the Refractories for the Steel Industry category, or contact our technical sales team for a free consultation against your refractory drawing.
Product Features
Features:
- Manufactured from high-purity corundum and magnesium aluminate spinel as the main raw materials
- Engineering-proven wet spraying technique with no environment pollution for ladle working layer repair
- Good flowability, high adhesion strength, and long service life for ladle working layer maintenance
- Endlessly cycle usable to lower the refractory materials consumption and waste appearance
- Two GBP chemistry grades covering alumina content 85%-88% and magnesia content matching different ladle working layer conditions
Product Specification
Pre-mixed granular gunning material is engineered per buyer’s ladle working layer surface repair design. Custom chemistry and grain size available on request.
|
Brands
Items
|
CH-GBP85 | CH-GBP88 |
|---|---|---|
| Al2O3 content (%) | ≥ 85 | ≥ 88 |
| Apparent Porosity (%) | ≤ 12 | ≤ 11 |
| Bulk Density (g/cm³) | ≥ 2.80 | ≥ 2.90 |
| Cold Crushing Strength (MPa) | ≥ 60 | ≥ 70 |
| Permanent Linear Change (%) | 0~+1.5 (1550 °C, 3h) |
0~+1.5 (1550 °C, 3h) |
Note: Five performance parameters specified: Al2O3 content, Apparent Porosity, Bulk Density, Cold Crushing Strength, and Permanent Linear Change. Two GBP chemistry grades engineered for ladle working layer surface gunning repair service. For project-specific chemistry, contact CH Refractories engineering.
Product Applications
Ladle Working Layer Gunning Mix is a refractory gunning product manufactured from high-purity corundum and magnesium aluminate spinel as the main raw materials, engineered for ladle working layer surface repair by gunning method. The product family features wet spraying technique with no pollution to environment and no CO2 or CO gas produced during ladle production and use, ensuring a carbon-free and environment-friendly ladle operation.
Application Industry: Refractories for the Steel Industry and the broader Metallurgical Industry.
Target Equipment: Ladle Working Layer Surface of small, medium-size, and large ladles in steelmaking operations.
Specific Application Zones: The CH-GBP85 grade (alumina content minimum 85%, apparent porosity maximum 12%, bulk density minimum 2.80 g/cm³, cold crushing strength minimum 60 MPa) is the standard variant for ladle working layer surface gunning repair. The CH-GBP88 grade (alumina content minimum 88%, apparent porosity maximum 11%, bulk density minimum 2.90 g/cm³, cold crushing strength minimum 70 MPa) is the high-alumina workhorse for demanding ladle working layer surface gunning repair. Both grades deliver permanent linear change 0 to +1.5 percent after 1550 °C firing for 3 hours. The product family can be endlessly cycle used to lower the refractory materials consumption and waste appearance, working with key role on the ladle continue and safety use.
CH Refractories is a Ladle Working Layer Gunning Mix manufacturer in China, Henan, Zhengzhou. The complete Ladle Working Layer Gunning Mix product family is manufactured in our Xinmi City, Zhengzhou, Henan, China facility to ASTM, GB/T, and ISO refractory standards. Each batch is supported by free consultation, on-site technical support, and a dedicated engineering team serving Refractories for the Steel Industry customers across the global iron and steel value chain.
