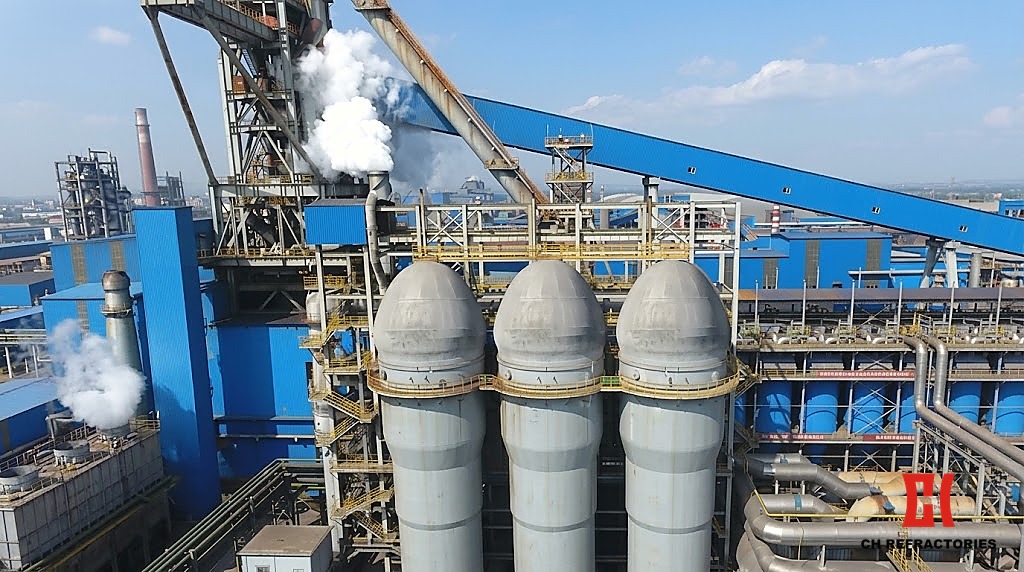

Customized 3D CFD flow simulation-driven Hot Blast Stove Refractory engineering for Fujian Dingxin Steel’s hot blast stove — verified 15+ years service life.
Hot Blast Stove Technology Background
Modern hot blast stoves are designed based on the proven Kalukin two generations of hot blast stoves. The technology is characterized by excellent structural stability with two major structural forms: the large-dome design with spherical vault and annular or sleeve burner suited for high-capacity stoves, and the small-dome design with conical dome and bell-shaped pre-combustion chamber suited for standard-capacity stoves.
Hot blast stove burner technology features rapid and uniform premixed combustion, oxygen-enriched combustion-supported staged combustion, low-oxygen grading and low-nitrogen combustion, and partially controllable thermal storage (checker brick or refractory ball) premixed combustion.
Such a hot blast stove achieves rapid and uniform mixing with high-intensity reflux preheating combustion, ensuring high heat efficiency, high heat strength, and high air supply temperature, achieving fuel savings, investment reduction, and harmful gas emission reduction. Our Hot Blast Stove Refractory engineering delivers complete turnkey solutions for modern hot blast stove installations.
Our One-Stop Solution
For the Dingxin standard capacity hot blast stove, our engineering team performed customized 3D CFD flow simulation to optimize combustion efficiency and validate uniform heat distribution across the checker chamber. Our Hot Blast Stove Refractory one-stop solution covers six integrated steps:
Step: Engineering Design
Customized 3D CFD flow simulation (1-2 weeks). Custom brick shape design per zone specifications.
Step: Material Manufacturing
Standard brick shape production (2-3 weeks). ISO 9001 batch quality testing with traceability.
Step: Delivery
Export-standard packaging. FOB/CIF logistics planning. Worldwide delivery tracking.
Step: Site Installation
Senior engineer on-site supervision. Senior mason per-zone masonry. Quality checkpoints per zone. Dimensional verification.
Step: Commissioning
Hot test verification. Performance baseline measurement. Technical documentation delivery. Client team training.
Step: After-Sales Service
15+ years service life commitment. Post-commissioning monitoring. Hot repair programs. 24/7 technical support.
Refractory Products Used in This Project
CH Refractories’ 125-product portfolio across 13 categories — engineered specifically for Dingxin standard capacity hot blast stove service conditions. Our Hot Blast Stove Refractory selection includes:
Dome & Combustion Chamber — Refractories for Steel Industry: High alumina brick (alumina content ≥70) and high alumina refractory mortar for dome and combustion chamber lining — engineered for 1300 °C+ operating temperatures and continuous thermal cycling stress.
Cross-reference: Low Creep High Alumina Brick · High Alumina Refractory Mortar · Refractory Cement
Regenerator Checker — Hot Blast Stove Category: Silica brick (silica content ≥95) for regenerator checker chamber and common silica brick for upper zones — engineered for thermal cycling and alkali attack resistance from combustion gases.
Cross-reference: Silica Brick for Hot Blast Stoves · Common Silica Brick · Refractory Balls
Transition Zones — Common Refractory Materials:Low creep andalusite brick and low creep mullite brick for transition zones between combustion chamber and regenerator — engineered for thermal shock resistance.
Cross-reference: Low Creep Andalusite Brick · Low Creep Mullite Brick
Complex Shapes & Joints — Refractory Raw Materials:High-temperature castables, refractory clay, and refractory cement for complex shapes and joint sealing — engineered for installation precision and long-term thermal stability.
Cross-reference: Refractory Cement · Refractory Clay
3D CFD Flow Simulation
Two selected CFD validation videos from the Fujian Dingxin Hot Blast Stove Refractory simulation series — gas flow trajectory and airflow trajectory validation.
CFD 3D Animation: Airflow Trajectory (Fujian Dingxin Hot Blast Stove)
CFD 3D Animation: Gas Flow Trajectory (Fujian Dingxin Hot Blast Stove)
Project Data & On-Site Results
Fujian Dingxin Steel commissioned CH Refractories to deliver complete refractory lining solution for their hot blast stove. The project demonstrates our capability to deliver custom engineering solutions for standard-capacity hot blast stoves with verified long-term performance. Our Hot Blast Stove Refractory engineering delivers verified results across the steel industry.
After-Sales Service Commitment
We stand behind our products and services with comprehensive after-sales support throughout the refractory campaign life.
Warranty & Service Life
15+ years verified service life commitment for hot blast stove installations. Post-commissioning monitoring with periodic performance reports. Quarterly or biannual on-site inspections during planned shutdowns.
Hot Repair Programs
Hot repair castable supply for emergency maintenance. Gunning mix programs for periodic surface renewal. 48-hour spare parts delivery for in-stock items, 4-6 weeks for custom parts.
Technical Support & Training
24/7 technical support hotline via WeChat, email, and phone. On-site client team training (3-5 days per team) covering installation, hot repair, and safety protocols. Multilingual support available.
