3D CFD flow simulation-driven refractory engineering for Jiugang Iron & Steel Group’s 1080 m³ hot blast stove — verified 15+ years service life. Our Hot Blast Stove Refractories are engineered for large-capacity stove service conditions.
Hot Blast Stove Technology Background
The hot blast stove is a series of hot blast stoves with excellent structural stability developed on the basis of Kalukin two generations of hot blast stoves. Its shape and structural characteristics mainly inherit two major structural forms: the large-dome hot blast stove with spherical vault and annular or sleeve burner, and the small-dome hot blast stove with conical dome and bell-shaped pre-combustion chamber.
Hot blast stove burners feature rapid uniform premixed combustion, oxygen-enriched combustion-supported staged combustion, low-oxygen grading and low-nitrogen combustion, and partially controllable thermal storage (checker brick or refractory ball) premixed combustion.
Such a hot blast stove achieves rapid and uniform mixing with high-intensity reflux preheating combustion, ensuring high heat efficiency, high heat strength, and high air supply temperature, achieving fuel savings, investment reduction, exhaust gas temperature reduction, and harmful gas emission reduction. Our Hot Blast Stove Refractories deliver complete turnkey solutions for modern hot blast stove installations.
Our One-Stop Solution for Hot Blast Stove
From initial engineering design to long-term after-sales service, CH Refractories delivers turnkey refractory engineering for hot blast stove installations. Our Hot Blast Stove Refractories one-stop solution covers six integrated steps:
Step: Engineering Design
3D CFD flow simulation of 1080 m³ hot blast stove. Gas flow, air flow, and flue gas trajectory validation. Custom brick shape design per zone.
Step: Material Manufacturing
High alumina brick, silica brick, andalusite brick, mullite brick production. ISO 9001 batch quality testing. Export-standard packaging.
Step: Site Installation
Senior engineer on-site supervision. Senior mason per-zone masonry. Quality checkpoints per zone. Dimensional verification.
Step: Commissioning
Hot test verification. Performance baseline measurement. Technical documentation delivery. Client team training.
Step: After-Sales Service
15+ year service life commitment. Post-commissioning monitoring. Quarterly or biannual on-site inspections during shutdowns.
Step:Hot Repair Programs
Hot repair castable supply. Gunning mix programs for surface renewal. 48-hour spare parts delivery. Technical training.
Refractory Products Used in This Project
Cross-referenced from CH Refractories’ 125-product portfolio across 13 categories — engineered specifically for 1080 m³ hot blast stove service conditions. Our Hot Blast Stove Refractories selection includes:
Dome & Combustion Chamber — Refractories for Steel Industry:High alumina brick (alumina content ≥70) and high alumina refractory mortar for dome and combustion chamber lining — engineered for 1300 °C+ operating temperatures and continuous thermal cycling stress.
Cross-reference: Low Creep High Alumina Brick · High Alumina Refractory Mortar · Refractory Cement
Regenerator Checker — Hot Blast Stove Category:Silica brick (silica content ≥95) for regenerator checker chamber and common silica brick for upper zones — engineered for thermal cycling and alkali attack resistance from combustion gases.
Cross-reference: Silica Brick for Hot Blast Stoves · Common Silica Brick · Refractory Balls
Transition Zones — Common Refractory Materials: Low creep andalusite brick and low creep mullite brick for transition zones between combustion chamber and regenerator — engineered for thermal shock resistance.
Cross-reference: Low Creep Andalusite Brick · Low Creep Mullite Brick
Complex Shapes & Joints — Refractory Raw Materials: High-temperature castables, refractory clay, and refractory cement for complex shapes and joint sealing — engineered for installation precision and long-term thermal stability.
Cross-reference: Refractory Cement · Refractory Clay
3D CFD Flow Simulation
Two selected CFD validation videos from the Jiugang 1080 m³ Hot Blast Stove Refractories simulation series — gas flow trajectory and flue gas trajectory validation.
CFD 3D Animation: Airflow Trajectories – (Jiugang 1,080 m³)
CFD 3D Animation: Gas Flow Trajectory – (Jiugang 1080 m³)
Project Data & On-Site Results
15+ Years Service Life · 1080 m³ Stove Capacity · 2 CFD Simulations · 4 Product Categories.

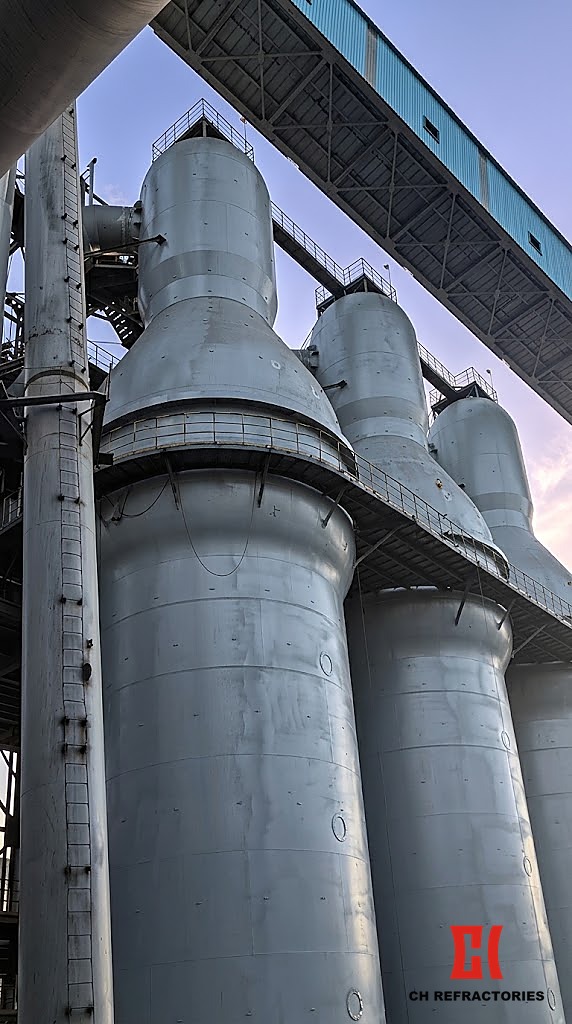

Jiugang Iron & Steel Group commissioned CH Refractories to deliver complete refractory lining solution for their 1080 m³ hot blast stove. The project demonstrates our capability to deliver custom engineering solutions for large-capacity hot blast stoves with verified long-term performance across steel industry applications. Our Hot Blast Stove Refractories engineering delivers verified results across the steel industry.
After-Sales Service Commitment
We stand behind our products and services with comprehensive after-sales support throughout the refractory campaign life.
Warranty & Service Life
15+ years verified service life commitment for hot blast stove installations. Post-commissioning monitoring with periodic performance reports. Quarterly or biannual on-site inspections during planned shutdowns.
Hot Repair Programs
Hot repair castable supply for emergency maintenance. Gunning mix programs for periodic surface renewal. 48-hour spare parts delivery for in-stock items, 4-6 weeks for custom parts.
Technical Support & Training
24/7 technical support hotline via WeChat, email, and phone. On-site client team training (3-5 days per team) covering installation, hot repair, and safety protocols. Multilingual support available.
Need Hot Blast Stove Engineering?
Contact our steel industry specialists for custom large-capacity hot blast stove refractory design, 3D CFD flow simulation, and engineering service. Our Hot Blast Stove Refractories engineering team will respond with a customized solution within 24 hours.
